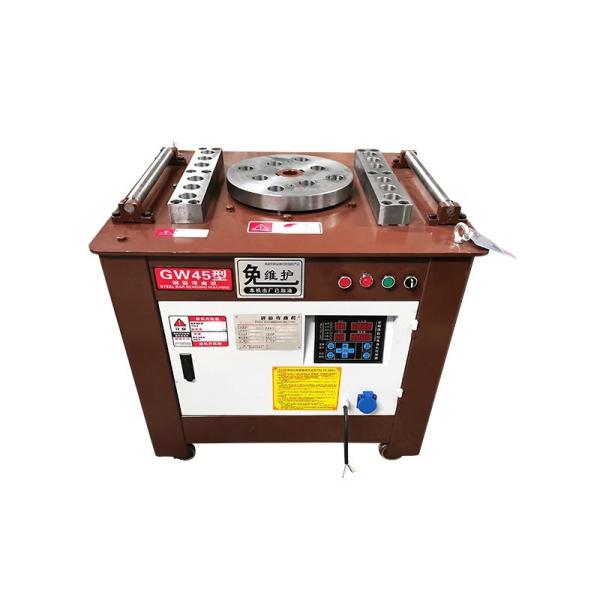

Dia 6-50mm Automatic Steel Bending Machine Construction

Brand Name : Qifu

Model Number : GW40 GW45 GW50

Place of Origin : Chongqing, China

MOQ : 1 pieces

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 10,000 units per month

Delivery Time : 7-30 days

Packaging Details : wooden cases

Certification : CE

Video inspection : provide

Mechanical test report : Provide

Core component warranty : 1 year

Core component : engine

Material/Metal Processing : Carbon Steel

Automation : semi-automatic

Applicable industry : construction engineering

Warranty service : video technical support, online support

Name : Easy Safe Operation Dia 6-50mm Steel Bar Bender Iron Bar Stirrup Bending Machine Construction

Keywords : Bending Machine Construction

Contact Now

Easy Safe Operation Dia 6-50mm Steel Bar Bender Iron Bar Stirrup Bending Machine Construction


Description:
Rebar bending machine is efficient machine used for bend low-carbon steel including round steel, steel flats, steel angles, and deformed steel bars into various shapes at construction sites and construction steel processing factories.



Advantage:
1. The numerical control controller can bend any angle conveniently and accurately.
2. The six-time quenching and forging process of the integral gear has greater power and longer service life.
3. The electric box is installed in a closed box, which is waterproof and dustproof
4. All bending tools can be free with the bending machine
5. There is a tool box welded inside the pipe bender, which not only reduces the transportation cost, but also is convenient to use

Why choose us:1. Compact structure, and easy to operate.
2. Use special thicker steel plate, high rigidity disk of iron, and motor with high quality, which guarantee a more stable performance.
3. It guarantees a longer life with the eccentric bushing, ultra-high hardened accessories and adjustable baffle,
4. Wide bending range.

product name Steel bending machine
Origin Chongqing, China
​Motor power (kW) 3KW/4KW
​Voltage 380V, customized
Material / Metal Processed:
 Carbon steel
​Bending range 6-50mm
Applicable Industries: Energy & Mining, Manufacturing Plant
Bending materials round steel, steel bars



Model Motor power Motor speed Bending diameter Voltage Bending speed Bending angle Weight Dimension
(mm)
round bar rebar
GW40 3KW 1440r/min 6-32mm 6-28mm 110V/
220V/
380V/
415V/
customized		 18-20r/min
adjustable		 0-180° 240kgs 820x760x720
GW40A
(auto/CNC)		 3KW 6-32mm 6-28mm 240kgs 820x760x720
GW45
(auto/CNC)		 3KW 6-36mm 6-32mm 320kgs 870x760x720
GW50
(auto/CNC)		 4KW 6-50mm 6-40mm 360kgs 980x760x740

Dia 6-50mm Automatic Steel Bending Machine Construction
